Services

Last updated

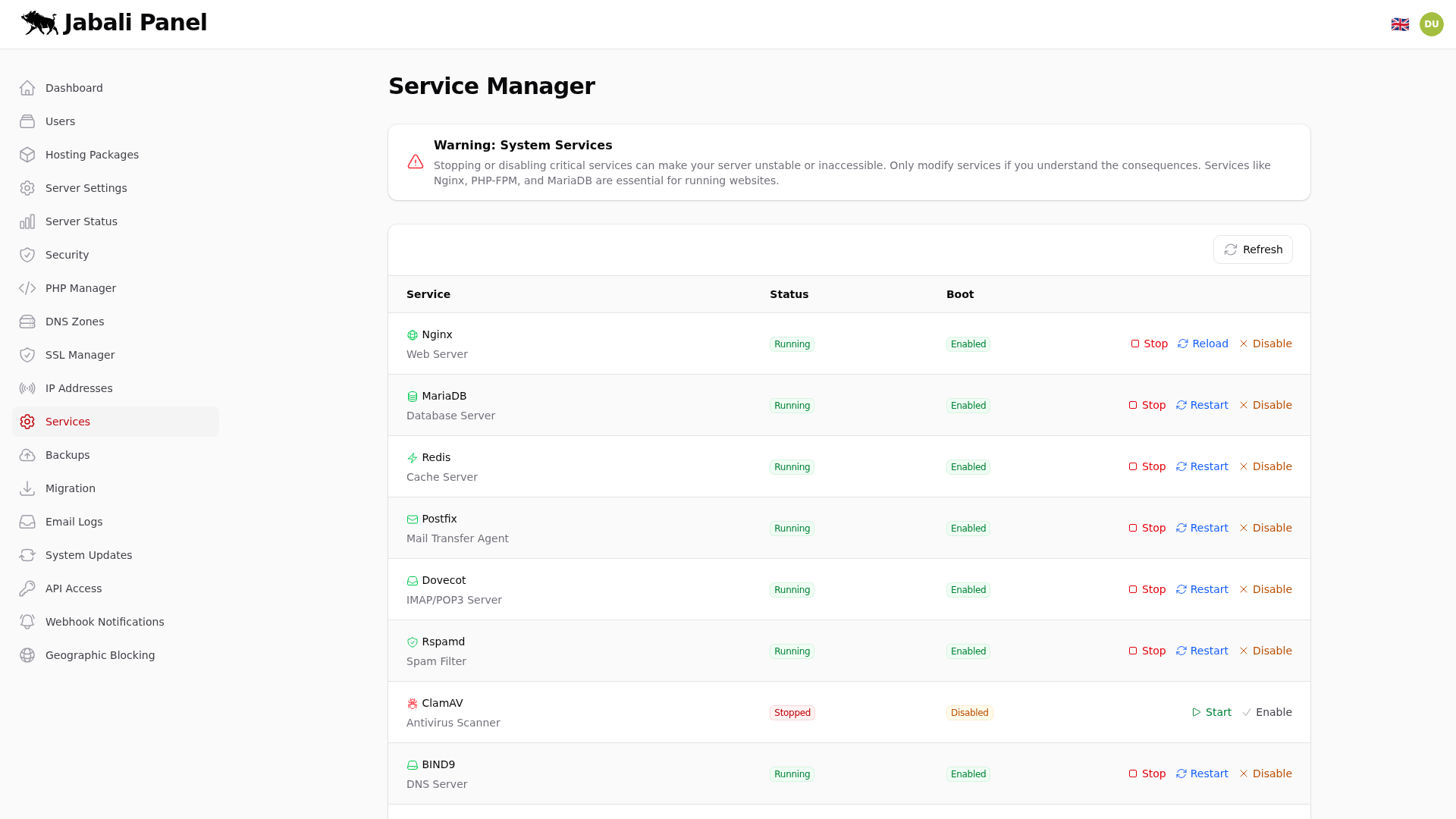

The Services card on Server Status: the systemd units the panel shows, and what you can do to each one.

What you can do here

Each row shows the unit’s name, its state and its buttons. A unit’s buttons depend on its state:

  • Start: shown when the unit is inactive or failed.
  • Restart: shown when the unit is running.
  • Reload: shown when nginx or pdns is running. A reload does not drop connections in progress.
  • Stop: shown when the unit is running. It is not shown for the units in Units you cannot stop.
  • Enable at boot / Disable at boot: change the unit’s boot-time autostart. Disable is not shown for the units in Units you cannot stop.

Stop, Disable and Restart ask you to confirm first. The agent runs each action, and the panel logs it with the admin who ran it (event=audit kind=service_action). Only admins can use these buttons.

An inactive unit that is not enabled at boot shows a grey idle tag instead of a red one. That unit is idle on purpose. For example, jabali-webmail starts only when a domain turns email on.

Watched units

UnitRoleShown when
jabali-panel.serviceThe panel API and the web UI.Always.
jabali-agent.serviceThe root agent that performs every privileged host operation.Always.
jabali-kratos.serviceIdentity: login, 2FA and recovery.Always.
nginx.serviceReverse proxy and web server for every site.Always.
mariadb.serviceThe panel database and tenant MariaDB databases.Always.
redis-server.serviceThe notification dispatcher stream and the panel cache.Always.
ssh.serviceOpenSSH.Always.
jabali-stalwart.serviceMail: SMTP, IMAP, POP3, JMAP and the mailbox store.The mail module is on.
jabali-webmail.serviceBulwark webmail.The mail module is on and the unit is running.
pdns.serviceAuthoritative PowerDNS.The DNS module is on.
postgresql.serviceTenant PostgreSQL databases.PostgreSQL is turned on and the unit is running.
docker.serviceThe Docker engine for the app marketplace.The app marketplace is turned on.

A unit that is not installed or is masked is not shown. The list is the agent’s allow-list, and the agent refuses an action on any unit outside it.

PHP-FPM, pdns-recursor, CrowdSec, cron and the timers are not on this card. PHP-FPM runs as one jabali-fpm@<user>.service per panel user; the distro php<ver>-fpm units are masked. The scheduled jobs Jabali installs (its timers) are listed under Admin → Cron Jobs → System jobs, with Run now and their log. Use systemctl from a shell for anything else.

Units you cannot stop

The panel refuses Stop and Disable for these units with 403 self_destruct_blocked:

  • jabali-panel: the panel you are using.
  • jabali-agent: the only path from the panel to systemd.
  • jabali-kratos: every login and session refresh goes through it.
  • mariadb: the panel’s own database.
  • nginx: the panel is served through it.
  • redis-server: the panel process needs it.

Stopping any of these would lock you out of the panel. Restart is still allowed. To stop one of them, use systemctl from a shell on the host.

Restarting a unit the panel runs through

Restarting nginx, jabali-panel, jabali-agent or redis-server interrupts the panel itself. Every panel request goes through nginx, and the panel restarts along with the agent or Redis. The confirm dialog says so.

The panel schedules these restarts 2 seconds out, so its answer reaches you before the restart starts. The panel is then unreachable for a few seconds, and the Services card refreshes once it is back. Clicking Restart again while one is still pending is refused.

Alerts when a unit goes down

The service.down notification checks its own list of units once a minute:

  • jabali-panel, jabali-agent and jabali-kratos
  • jabali-stalwart and jabali-webmail
  • pdns and pdns-recursor
  • nginx, mariadb and redis-server

A failed unit sends the notification at once. An inactive unit sends it only when the unit is enabled at boot and stays inactive for 2 minutes; the delay skips the short restarts that jabali update does. A unit that is disabled, masked or not installed never sends it. See Notification events.

CLI

jabali service status                                                 # the same list as JSON
jabali service action <name> <restart|start|stop|reload|enable|disable> [--force]

Stop, restart and disable need --force. systemctl status <unit> from a shell gives the full systemd output.
