Automation API

Last updated

/jabali-admin/automation. Tokens for the server-wide Automation API.

The Automation API (/api/v1/automation/) is for systems that manage the whole server: a billing panel that creates and suspends hosting accounts, or a fleet manager that watches health and mail. The billing modules for WHMCS, Blesta and WiseCP use it. It is not the per-user API. A user’s own scripts use API Tokens in their shell, which act as that user and see only what the user owns. An automation token is server-wide, and its scopes limit it instead.

The API answers on the panel’s :8443 port. Some billing hosts cannot reach :8443 because their outbound firewall blocks it (CSF’s default TCP_OUT, for example). For them, turn on Also serve the API on port 443 on this page. It serves only the signed /api/v1/automation/ routes on :443; everything else stays on :8443.

Minting a token

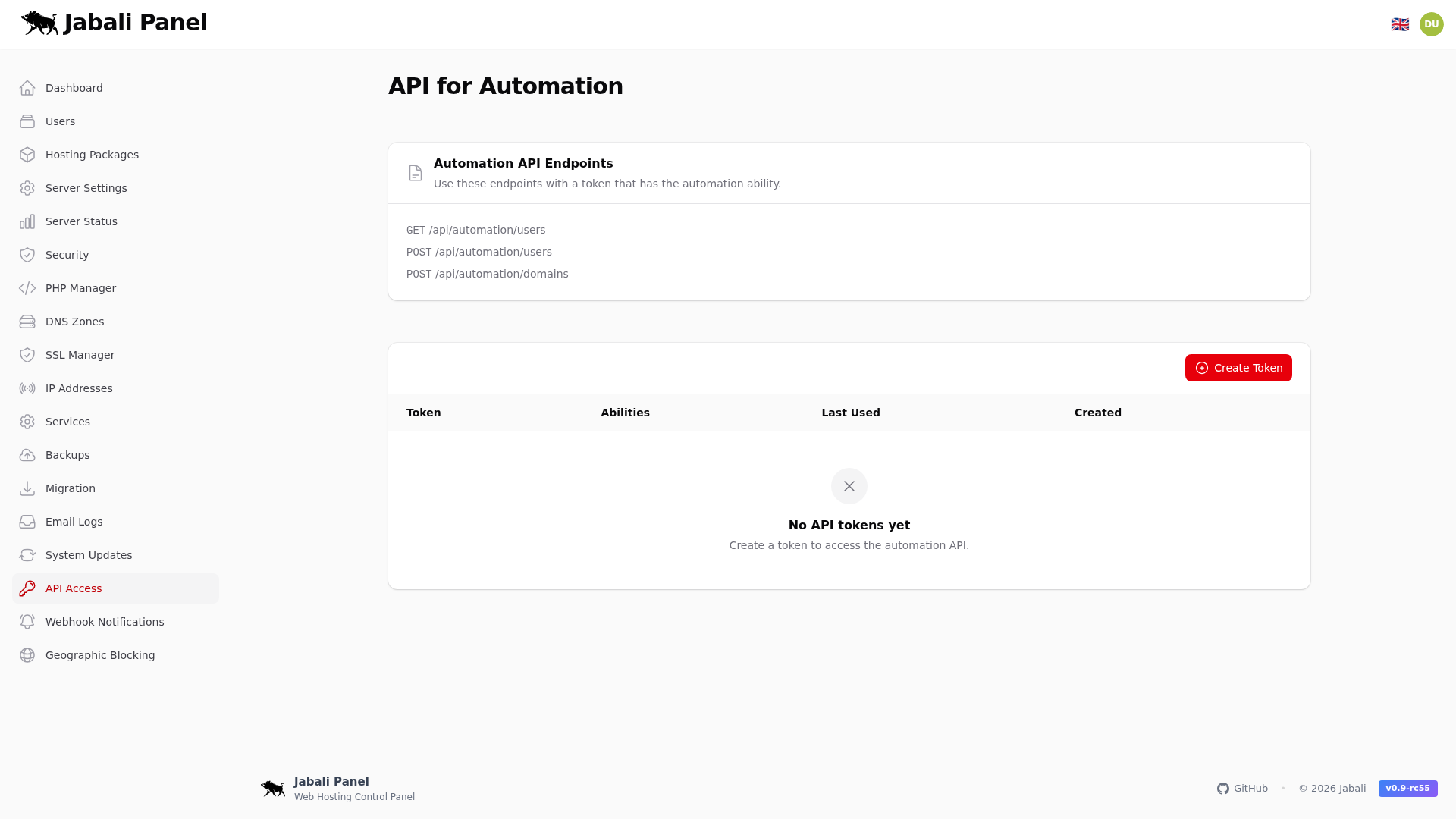

Click Create token, give it a name, pick its scopes, and click Generate. The secret is shown once, as a 64-character hex string. Copy it: the panel keeps it encrypted and never shows it again.

From the command line:

jabali automation-token mint billing --scope read:users --scope write:users
jabali automation-token list
jabali automation-token revoke billing

Scopes

Grant only what the caller needs. A read scope never implies a write scope, and a write scope never implies a delete scope.

ScopeAllows
read:domainslist domains
read:userslist and look up accounts; disk and bandwidth usage
read:applicationslist installed applications
read:packageslist hosting packages
read:mailmailboxes, mail domains, forwarders, groups, autoresponder status, totals
read:statuspanel health and raw host metrics (/automation/status)
read:metricsnormalised host metrics for a fleet monitor (/automation/server-status)
read:*every read scope (cannot be combined with individual read scopes)
write:userscreate accounts, set passwords, assign packages, suspend and unsuspend, mint one-time login links
write:domainssuspend and unsuspend domains; create a primary domain with a new account
write:cachepurge the web cache
write:backupsstart a server backup
write:servicesrestart a panel service on the allow-list
write:*every write scope
delete:usersdelete an account and everything it owns
delete:*every delete scope
assert:domain_ownershipa domain the token creates (for example with a new account from a billing system) is verified at once instead of waiting for its owner’s DNS proof. The billing system vouches that its customer owns the name. It is its own scope family: write:* does not include it, so grant it only to a billing system you trust.

Writes enabled is a switch on each write-scoped token. Turn it off to pause a token’s writes without revoking it.

Signing a request

Every request carries an Authorization header signed with the secret:

Authorization: Jabali-HMAC kid=<token id>, ts=<unix seconds>, sig=<hex>

sig is the hex HMAC-SHA256, keyed with the secret exactly as shown at mint, over four lines joined by \n:

  1. the method, e.g. GET
  2. the full request URI, path and query, e.g. /api/v1/automation/users?email=alice%40example.com
  3. ts
  4. the hex SHA-256 of the request body (of the empty string when there is none)

ts must be within 5 minutes of the panel’s clock, and no more than 30 seconds ahead. Each signature is accepted once, so a captured request cannot be replayed. Bodies are limited to 1 MiB.

KID=01K...                      # token id
SECRET=...                      # the 64-character secret
URI='/api/v1/automation/capabilities'
BODY=''
TS=$(date +%s)
BODY_HASH=$(printf '%s' "$BODY" | sha256sum | cut -d' ' -f1)
SIG=$(printf 'GET\n%s\n%s\n%s' "$URI" "$TS" "$BODY_HASH" \
  | openssl dgst -sha256 -hmac "$SECRET" -hex | awk '{print $NF}')
curl -s "https://panel.example.com:8443$URI" \
  -H "Authorization: Jabali-HMAC kid=$KID, ts=$TS, sig=$SIG"

A bad header, timestamp, token or signature answers 401. A token without the route’s scope answers 403.

Endpoints

Every route, with its scope, body and responses, is in the panel’s API docs: Personal API Tokens → Automation API, also at /api/v1/_meta/openapi.json. Pick Automation in the list of sections on the left, or type a path or a word in Search all endpoints to search every section at once. The API’s introduction is folded to its title; open it for the authentication and error formats. The address keeps the section you picked (#tag-automation), so you can link to it. Start with GET /api/v1/automation/capabilities: any valid token may call it, and it lists the write and billing actions this panel serves.

Behaviour worth knowing before you build on it:

  • Writes are rate-limited to 30 a minute per token, with bursts of up to 10.
  • Every write is audited under the token’s id, and creating, suspending or deleting an account raises a panel notification.
  • Account creation is safe to retry. When the email and username already belong to the same account, the call answers 200 with status: exists and that account’s id.
  • Deleting an account needs confirm: true. Send dry_run: true first to see what would be deleted.
  • Admin accounts are out of reach. The API never creates one, and refuses to delete, suspend, change the password of, or mint a login link for one.
  • Backups are asynchronous. POST /automation/backups answers 202 with an operation id; poll GET /automation/operations/{id}. Send an Idempotency-Key header so a retry does not start a second backup.
  • Some lists are capped at 200 rows: domains, users and applications.

Fleet monitor metrics

GET /api/v1/automation/server-status (scope read:metrics) returns a thinned, normalised host-metrics envelope, so a fleet monitor gets live health without host topology:

{
  "as_of": "2026-08-24T00:00:00Z",
  "cpu":  { "usage_percent": 12.5, "iowait_percent": 1.2 },
  "host": {
    "mem_used_kb": 4000000,
    "mem_total_kb": 8000000,
    "load_avg": [0.5, 0.4, 0.3],
    "partitions": [ { "mount_point": "/", "used_bytes": 40, "free_bytes": 55, "total_bytes": 100 } ]
  }
}

A partition’s used_bytes and free_bytes are df’s Used and Available. Blocks reserved for root are in neither, so used_bytes + free_bytes can be less than total_bytes. To show the percent df and the panel show, use used_bytes / (used_bytes + free_bytes), rounded up.

Each slice degrades on its own: if one collector fails, the rest still render and the failure is reported under errors. Results are cached for a few seconds, so frequent polling does not load the server.

Revocation

Revoke from this page or with jabali automation-token revoke. The token stops working on its next request.
